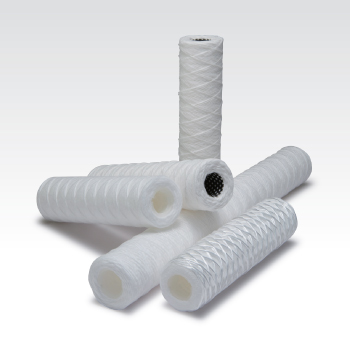

String Wound Depth Cartridge Filters
are used
in the Pre-filter applications.
This enhanced design provides the improved Dirt Holding
Capacity
of over the Standard Fiber wound cartridges.
It provides a Long Life cycle.
The materials are on the FDA listed as
acceptable things to be Portable
and Edible.
Its Nominal Micron ratings are from 0.5㎛ to 150㎛.
Applications
- - Cotton : This filter is used for the portable liquids, vegetable oil, food and beverages.
- - Polypropylene : It is for the organic solvents, water,
dilute acids, oxidizing agents and plating solutions.
| Features |
Advantages |
Benefits |
| Pre-filter applications |
Goodness for the High viscosity
and
dark solution |
The improved Dirt Holding
capacity |
| Nominal micron ratings |
The High flow rate and
relatively high efficiency |
The consistent production yields
and high quality |
| Graded density construction |
A Long life cycle
and more
competitive cost effective filtration |
The lower filtration costs |
| High Dirt Holding capacity |
The decrease in exchanging
cartridge filters |
Takes Less down-time |
| Features |
| Pre-filter applications |
| Nominal micron ratings |
| Graded density construction |
| High Dirt Holding capacity |
|
| Advantages |
| Goodness for the High viscosity and
dark solution |
| The High flow rate and relatively high efficiency |
| A Long life cycle and more
competitive cost effective filtration |
| The decrease in exchanging cartridge filters |
|
| Benefits |
| The improved Dirt Holding
capacity |
| The consistent production yields and high quality |
| The lower filtration costs |
| Takes Less down-time |
|
High Flux
Normal Type
- High Flux media blanket is superior to the Normal Type cartridges that break the yarn fibers resulting in the media migration.
- The Media Blanket
produces the greater Filtration Efficiency, increased contaminant Holding Capacity, and substantially cleaner Filtration.
Flow Specification
- Liquid flow rate per 10" filter Cartridge
- Liquid flow rate per 10" filter Cartridge
Performance Specification
Material of
Construction |
Recommended
Operating Conditions |
Removal Ratings |
Cartridge
Dimensions |
Fiber :
Polypropylene
/Cotton
Matrix :
Polypropylene
/Cotton
Core :
Polypropylene
/Tinned steel
/304&316SS |
Maximum Differential
Pressure :
70psi(4.8bar) (at 25℃)
Maximum
Temperature :
Cotton (at 121℃)
Polypropylene (at 80℃) |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| D5 |
0.5 |
25 |
25 |
| 01 |
1 |
50 |
50 |
| 03 |
3 |
75 |
75 |
| 05 |
5 |
1H |
100 |
| 10 |
10 |
H5 |
150 |
|
In diameter :
28/30mm
Out diameter :
62 ~ 65mm
Length(mm) :
250, 500, 750, 1000 |
Performance Specification
| Material of Construction |
Fiber : Polypropylene / Cotton
Matrix : Polypropylene / Cotton
Core : Polypropylene / Tinned steel / 304&316SS |
|
| Recommended Operating Conditions |
Maximum Differential Pressure :
70psi(4.8bar) (at 25℃)
Maximum Temperature :
Cotton (at 121℃) Polypropylene (at 80℃) |
|
| Removal Ratings |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| D5 |
0.5 |
25 |
25 |
| 01 |
1 |
50 |
50 |
| 03 |
3 |
75 |
75 |
| 05 |
5 |
1H |
100 |
| 10 |
10 |
H5 |
150 |
|
|
| Cartridge Dimensions |
In diameter : 28/30mm
Out diameter : 62~65mm
Length(mm) : 250, 500, 750, 1000 |
|
Ordering Information
For example : If You want to Purchase WPPD5A1P, You CAN Choose relevant items, At the each of DATA Articles.
| Brand |
Type |
Removal Ratings Grade |
End Cap Options |
Lengh |
Core |
W :
Wound
filter |
PP : Polypropylene
(high flux type)
PC : Cotton
(high flux type)
S : Polypropylene
(normal type)
C : Cotton
(normal type) |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| D5 |
0.5 |
25 |
25 |
| 01 |
1 |
50 |
50 |
| 03 |
3 |
75 |
75 |
| 05 |
5 |
1H |
100 |
| 10 |
10 |
H5 |
150 |
|
A : 250mm
D/O
B : 254mm
D/O |
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
P : PP
S : 304SS
N : 316SS
T : Tinned
Steel |
* Please inquire concerning any non-standard size.
Ordering Information
For example : If You want to Purchase WPPD5A1P, You CAN Choose relevant items, At the each of DATA Articles.
|
| Type |
PP : Polypropylene (high flux type)
PC : Cotton (high flux type)
S : Polypropylene (normal type)
C : Cotton (normal type) |
|
| Removal Ratings Grade |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| D5 |
0.5 |
25 |
25 |
| 01 |
1 |
50 |
50 |
| 03 |
3 |
75 |
75 |
| 05 |
5 |
1H |
100 |
| 10 |
10 |
H5 |
150 |
|
|
| End Cap Options |
A : 250mm
D/O
B : 254mm
D/O |
|
| Lengh |
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
|
| Core |
P : PP
S : 304SS
N : 316SS
T : Tinned Steel |
|
* Please inquire concerning any non-standard size.
