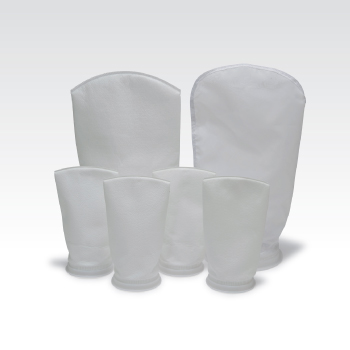

Ring & Flange Type Bag Filter
Ring & Flange Type Bag Filter
100% filtering by absolutely preventing bypass.
Improved Seal Integrity.
The materials are on the FDA listed as acceptable things to be Portable
and Edible.
    Applications
    • Food & Beverages : Beer, Flavours, Juices, Syrup and Wines
    • Industrials : Petroleum, Paints, Chemicals and Waste water
    • Pharmaceutical applications
    Advantage in use
  • - Collected contaminants build up in the bag filter,
    DUE TO the IN-OUT filtration system,
    which facilitates maintenance.
  • Bag Filter Size & Flow Rate
    Bag Filter Size Correction Factor
    01 SIZE X 0.3
    02 SIZE X 0.6
    11 SIZE X 1.0
    12 SIZE X 2.0

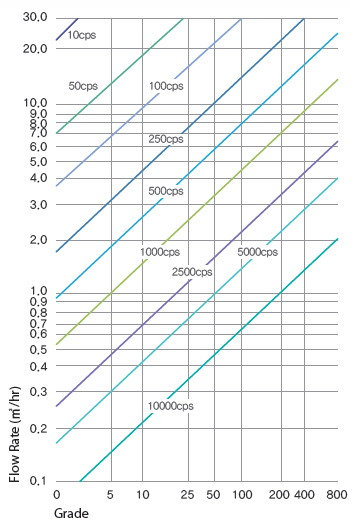

    Flow Specification
Specification
Material of Construction Cartridge Dimensions
Media : Polypropylene, Polyester, Nylon
(Ring & Flange Type Bag Filter)
Bag Filter size :
100x230mm, 100x380mm, 180x430mm, 180x810mm
Material of Construction
Media : Polypropylene, Polyester, Nylon
(Ring & Flange Type Bag Filter)
Cartridge Dimensions
Bag Filter size :
100x230mm, 100x380mm, 180x430mm, 180x810mm
Bag Filter Size & Flow Rate
  1 5 10 15 25 50 80 100 125 150 200 250 300 400 600 800
Polyester
Polypropylene
Nylon Monofilament Mesh
Bag Filter Size & Flow Rate
  Polyester Polypropylene Nylon Monofilament Mesh
1
5
10
15
25
50
80
100
125
150
200
250
300
400
600
800
Ordering Information
For example : If You want to Purchase IPE25R02PW, You CAN Choose relevant items, At the each of DATA Articles.
Brand Media Micron Type Bag Filter Size Ring material Handle/Style
I :IXTUS Bag
Filter
PE :
Polyethylene
Terephthalate
PP :
Polypropylene
NM :
Nylon
Monofilament
1 : 1㎛
25 : 25㎛
800 : 800㎛
(* see Media
Micron Ratings.)
R : Ring Type
P : Plastic
flange Type
B : Band Type
01 : 100×230mm
02 : 100x380mm
11 : 180x430mm
12 : 180x810mm
E : SUS304
P : Plastic Ring
Z : Zinc Plated
Ring
W : With Handle
N : None Handle
S : Reverse style
(standard)
O : Outside
Stitching
* Please inquire concerning any non-standard size.
Ordering Information
For example : If You want to Purchase IPE25R02PW, You CAN Choose relevant items, At the each of DATA Articles.
Brand
I : IXTUS Bag Filter
Media
PE : Polyethylene Terephthalate
PP : Polypropylene
NM : Nylon Monofilament
Micron
1 : 1㎛
25 : 25㎛
800 : 800㎛ (* see Media Micron Ratings.)
Type
R : Ring Type
P : Plastic flange Type
B : Band Type
Bag Filter Size
01 : 100×230mm
02 : 100x380mm
11 : 180x430mm
12 : 180x810mm
Ring material
E : SUS304
P : Plastic Ring
Z : Zinc Plated Ring
Handle/Style
W : With Handle
N : None Handle
S : Reverse style (standard)
O : Outside Stitching
* Please inquire concerning any non-standard size.
