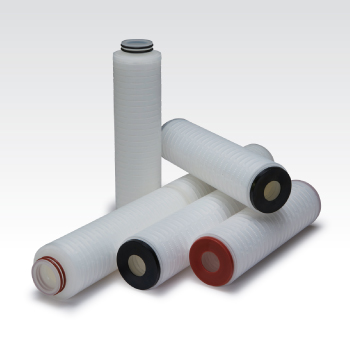

Pleated Membrane Filter
Hydrophobic PTFE, Hydrophilic PTFE, Nylon66 Cartridge Filters
remove
particles and micro-organisms greater than 0.2㎛ from
gases and
liquids.
Hydrophilic Nylon66, PVDF Pleated Cartridge Filters are
manufactured
from N66 membranes, Polyvinylidene fluoride
and Polypropylene
components used for the broad application
compatibility.
Hydrophilic PES Pleated Cartridge Filter constructed of
Polyethersulfone
micro-porous membrane and Polypropylene
support components
enable Superior Durability and Particle
Removal Performance,
and can be used in the various applications.
Hydrophilic PES filter elements are integrity tested after
manufacturing
using Bubble Point and Air Diffusion.
Each Cartridge Filter is integrity tested during
manufacturing
to guarantee performance.
The materials are on the FDA listed as acceptable
things to be
Portable
and Edible.
| Features |
Advantages |
Benefits |
| Performance tested |
Has the reliable Sterilizing Filtration |
Ease the validation and regulatory
submission |
Used in the various
applications |
Allows the Maximum fluid
and
contaminant access to filter surface area
for the highest throughput |
Enables Superior durability
and
Particle Removal Performance |
| Features |
| Performance tested |
| Used in the various
applications |
|
| Advantages |
| Has the reliable Sterilizing Filtration |
| Allows the Maximum fluid and
contaminant access to filter surface area
for the highest throughput |
|
| Benefits |
| Ease the validation and regulatory
submission |
| Enables Superior durability and
Particle Removal Performance |
|
Flow Specification
- Liquid flow rate per 10" filter Cartridge
- Liquid flow rate per 10" filter Cartridge
Flow Specification
- Liquid flow rate per 10" filter Cartridge
- Liquid flow rate per 10" filter Cartridge
Performance Specification
Material of
Construction |
Recommended
Operating Conditions |
Removal Ratings |
Cartridge
Dimensions |
Media :
Hydrophobic PTFE,
Hydrophilic Nylon66,
Polyethersulfone membrane,
Hydrophilic
Polyvinylidene fluoride
Core/cage/end Caps and
support : Polypropylene
Sealing Method :
Thermal bonding |
Forward Pressure
PTFE/PES/Nylon66 :
70psi(4.8bar) (at 25℃)
Reverse pressure
PTFE/PES/Nylon66 :
40psi(2.7bar) (at 25℃)
PVDF :
50psi(3.5bar) (at 20℃) |
| Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
| A2 |
0.02 |
10 |
1 |
| A5 |
0.05 |
12 |
1.2 |
| 01 |
0.1 |
30 |
3 |
| 02 |
0.2 |
50 |
5 |
| 04 |
0.45 |
11 |
10 |
|
In diameter :
28/30mm
Out diameter :
68mm
Length(mm) :
250, 254, 500,
508, 750, 762,
1000, 1016 |
Performance Specification
| Material of
Construction |
Media :
Hydrophobic PTFE, Hydrophilic Nylon66, Polyethersulfone membrane, Hydrophilic Polyvinylidene fluoride
Core/cage/end Caps and support : Polypropylene
Sealing Method : Thermal bonding |
|
| Recommended Operating Conditions |
Forward Pressure PTFE/PES/Nylon66 :
70psi(4.8bar) (at 25℃)
Reverse pressure PTFE/PES/Nylon66 :
40psi(2.7bar) (at 25℃)
PVDF : 50psi(3.5bar) (at 20℃) |
|
| Removal Ratings |
| Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
| A2 |
0.02 |
10 |
1 |
| A5 |
0.05 |
12 |
1.2 |
| 01 |
0.1 |
30 |
3 |
| 02 |
0.2 |
50 |
5 |
| 04 |
0.45 |
11 |
10 |
|
|
| Cartridge Dimensions |
In diameter : 28/30mm
Out diameter : 68mm
Length(mm) : 250, 254, 500, 508, 750, 762, 1000, 1016 |
|
Ordering Information
For example : If You want to Purchase IPTFA2A5EV, You CAN Choose relevant items, At the each of DATA Articles.
| Brand |
Type |
Media |
Removal Ratings Grade |
End Cap Options |
Lengh |
O-ring Material |
Special Option |
I :
IXTUS |
P :
Pleated |
TF : Hydrophobic
PTFE
TI : Hydrophilic
PTFE
NI : Hydrophilic
Nylon66
SI/SO : Hydrophilic
PES
VI : Hydrophilic
PVDF |
| Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
| A2 |
0.02 |
10 |
1 |
| A5 |
0.05 |
12 |
1.2 |
| 01 |
0.1 |
30 |
3 |
| 02 |
0.2 |
50 |
5 |
| 04 |
0.45 |
11 |
10 |
|
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end
G : 020 Internal O-ring
M : 226 O-ring/Flat end
(Modified Flat end) |
5 : 5"
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon
Encapsulated
Viton |
S : SUS ring
Insertionated |
* Please inquire concerning any non-standard size.
Ordering Information
For example : If You want to Purchase IPTFA2A5EV, You CAN Choose relevant items, At the each of DATA Articles.
|
|
|
|
| Media |
TF : Hydrophobic PTFE
TI : Hydrophilic PTFE
NI : Hydrophilic Nylon66
SI/SO : Hydrophilic PES
VI : Hydrophilic PVDF |
|
| Removal Ratings Grade |
| Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
| A2 |
0.02 |
10 |
1 |
| A5 |
0.05 |
12 |
1.2 |
| 01 |
0.1 |
30 |
3 |
| 02 |
0.2 |
50 |
5 |
| 04 |
0.45 |
11 |
10 |
|
|
| End Cap Options |
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end
G : 020 Internal O-ring
M : 226 O-ring/Flat end (Modified Flat end) |
|
| Lengh |
5 : 5"
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
|
| O-ring Material |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon Encapsulated Viton |
|
| Special Option |
| S : SUS ring Insertionated |
|
* Please inquire concerning any non-standard size.
